Dolly III Campervan

Three methods to charge the 200 Ah Battle Born LiFePO4 Batteries. Charge via:

• 600W solar power,

• alternator through the smart isolator,

• shore power with inverter/charger.

Dual swivel seats.

Two CR Laurence Louvre style windows.

MaxxAir fan with integrated rain shield.

60″ x 74″ queen short memory foam mattress.

Outdoor shower with 4 gallon electric hot water heater.

Awning doubles living space with an additional 88 square feet of space.

Birch butcher block countertops.

Three spacious drawers.

One hidden drawer under the fridge.

Two, large overhead cabinets with 100N gas struts, cabinet door magnetic locks, and one shelf in each.

Spice rack/storage shelf between countertop and window.

Refrigerator: Indel B TF130, 12V, 130L capacity with 6L freezer.

Under-mount stainless steel sink with brushed nickel faucet.

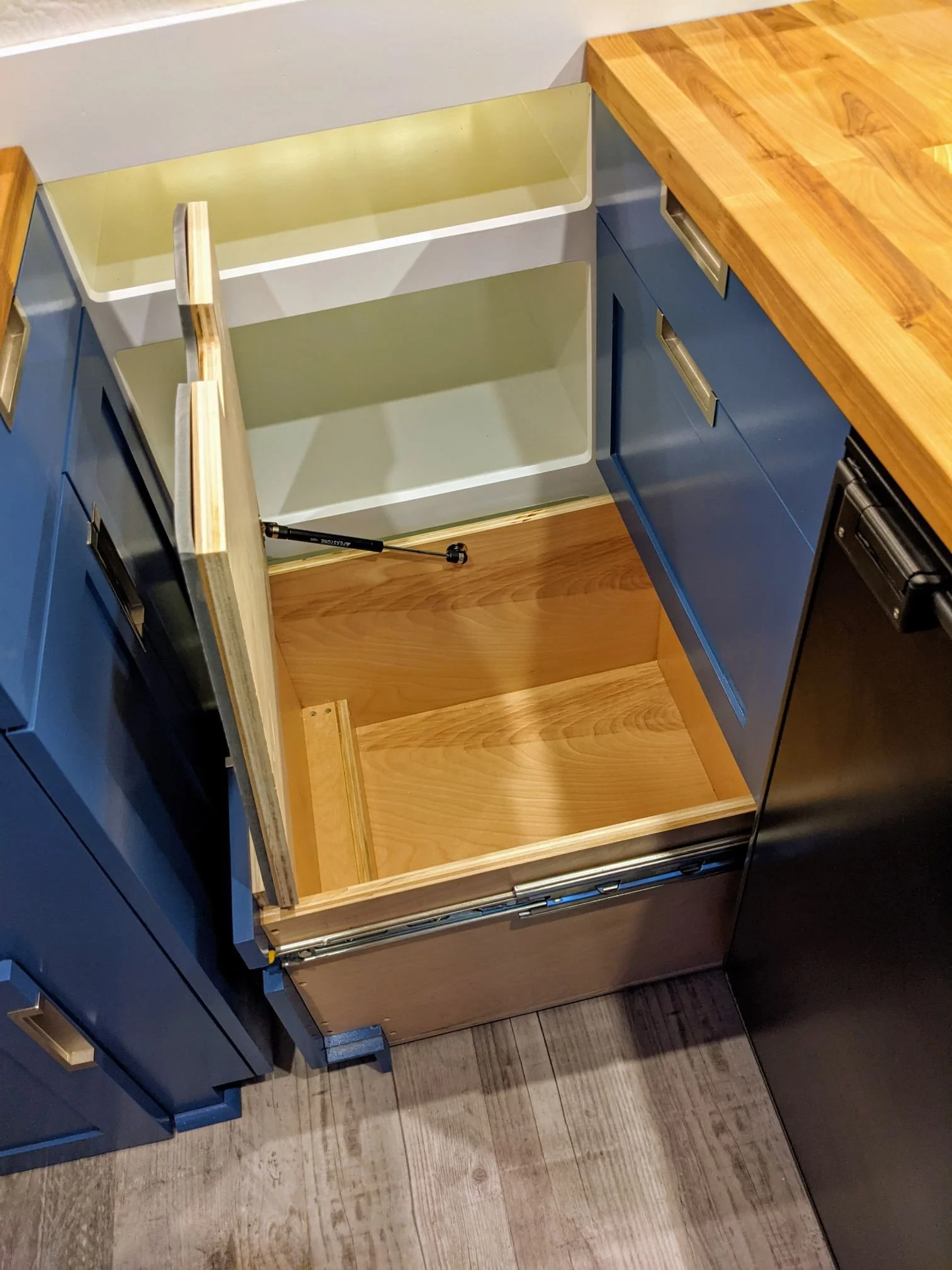

False front tip out drawer with soft close at sink.

Storage under the sink accessed via two cabinet doors on the front or one on the side.

20 gallon fresh water tank and 15 gallon grey water tank.

Bosch Electric Mini-Tank 4 Gallon Water Heater.

Shurflo water system (strainer, water pump, accumulator).

3M Filtrete water filter system (0.5 micron).

120V AC under cabinet dual outlet.

Two 12V outlets in kitchen.

Dimmable, under cabinet LED strip light.

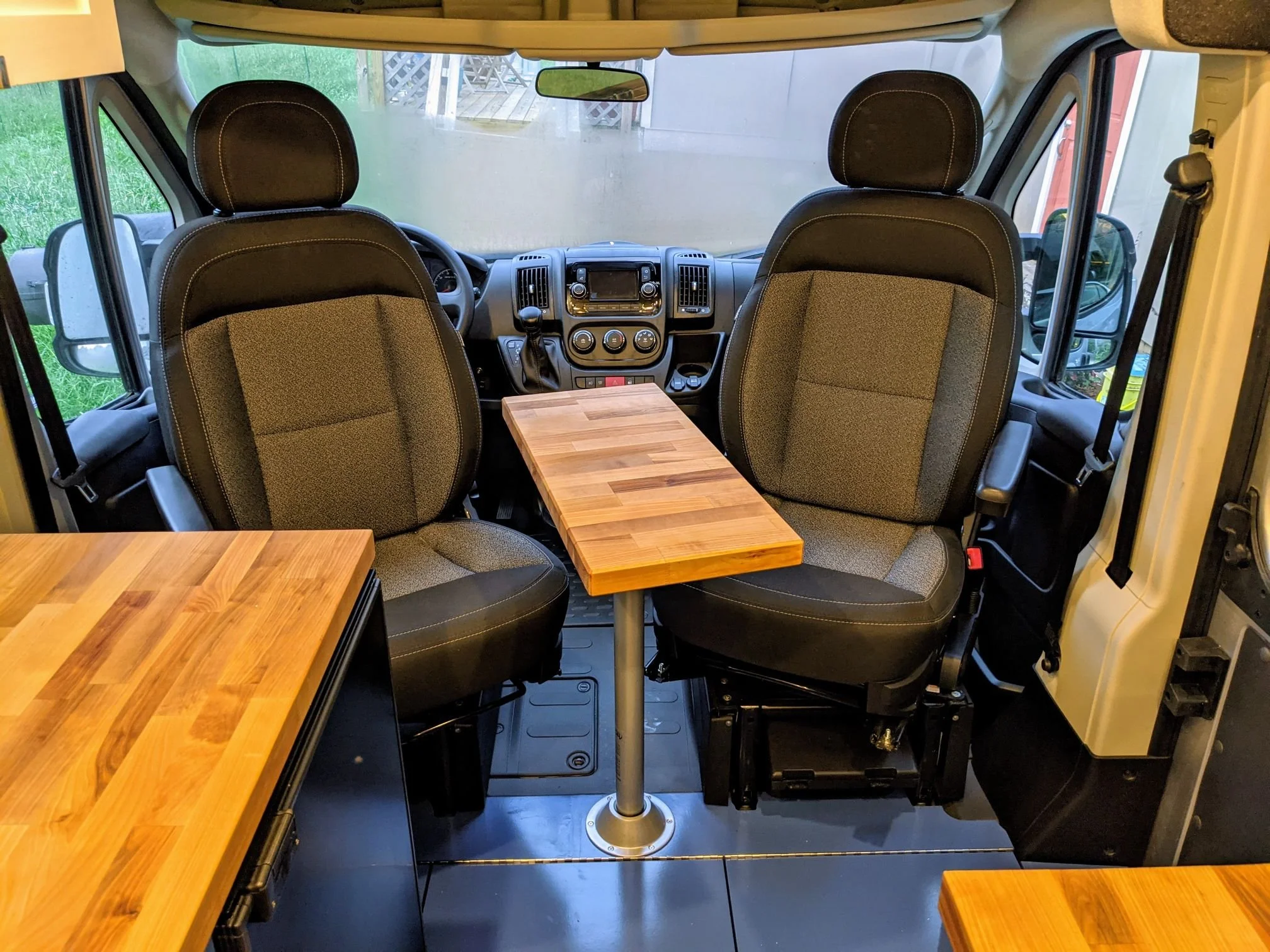

Dual swivel seats with birch butcher block table mounted on a removable table leg.

Built in storage for tabletop and leg behind driver seat.

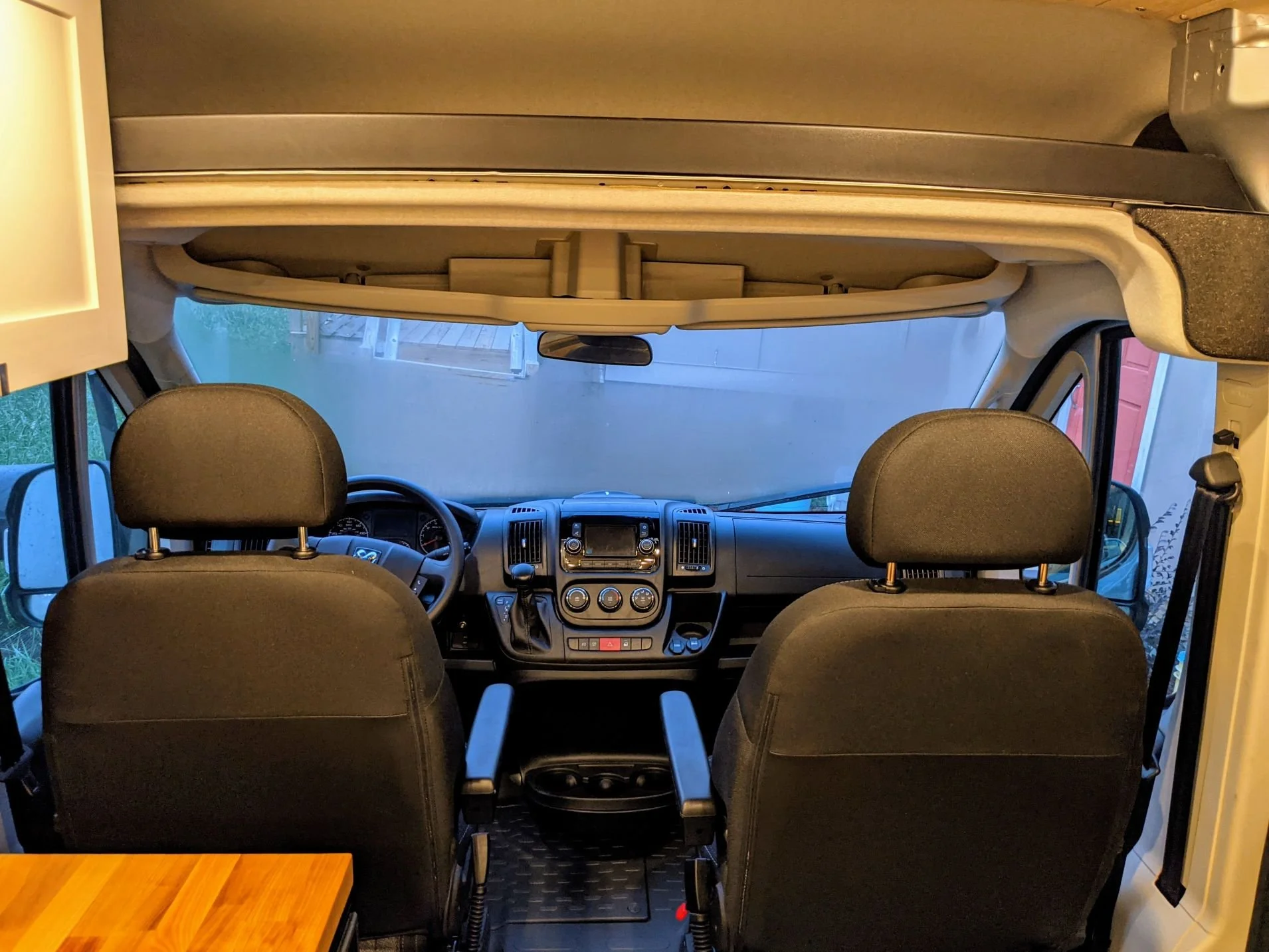

Cab extension and storage area that doubles as foot rest when seats are swiveled.

Queen short bed with 6 inch memory foam mattress (74” L x 60” W x 6” H).

12V DC outlets located at all four corners of the bed.

Two bedside shelves.

Garage storage for adventure gear.

Hot, outdoor shower. Hot water supplied via 4 gallon Bosch hot water heater.

Two 12V outlets accessible from the garage.

12V LED strip light.

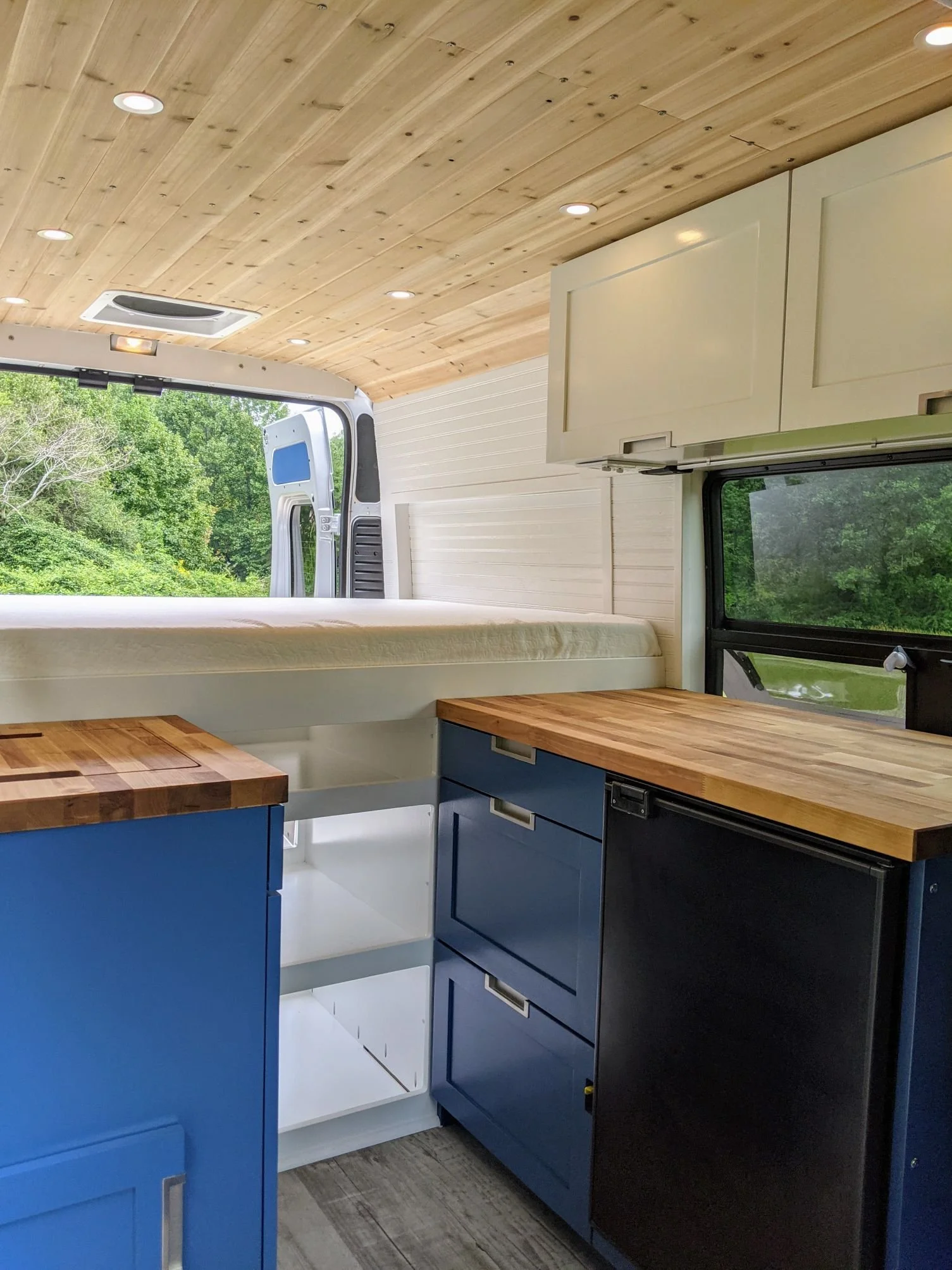

Cedar tongue and groove ceiling.

Dual zone, dimmable, 12V puck lighting.

MaxxAir MaxxFan 7500K Deluxe ventilation fan with Remote with integrated rain shield.

Lifeproof vinyl plank flooring.

600 Watts (2 x 300 Watt) Monocrystalline 24 Volt Solar Panels.

Victron Energy SmartSolar MPPT 100/50 Charge Controller (with Bluetooth).

2 x 100 Ah Battle Born LiFePO4 Batteries (200 Ah usable capacity).

Victron Energy BMV-712 Smart Battery Monitor.

Renogy 2000 Watt 12V DC to 120V AC Pure Sine Wave Inverter Charger w/LCD Display, 6000W Surge.

• Remote on/off switch located in kitchen near 120V AC outlets.

• 65A charging capability.

20 Amp Shore Power Hookup.

Battle Born Lithium Battery Isolation Manager, Li-BIM 225.

Three 12V DC Outlets located throughout the living space (Two additional 12V outlets powered via the van battery, one outlet located in the cabin and one outlet located in the garage).

Two 120V AC Outlets located in the kitchen area.

OVS Nomadic 180 Awning.

Camco 41541 Portable Travel Toilet – 5.3 Gallon.

Running Boards, driver and passenger.

Van Tech H3 Roof Rack.

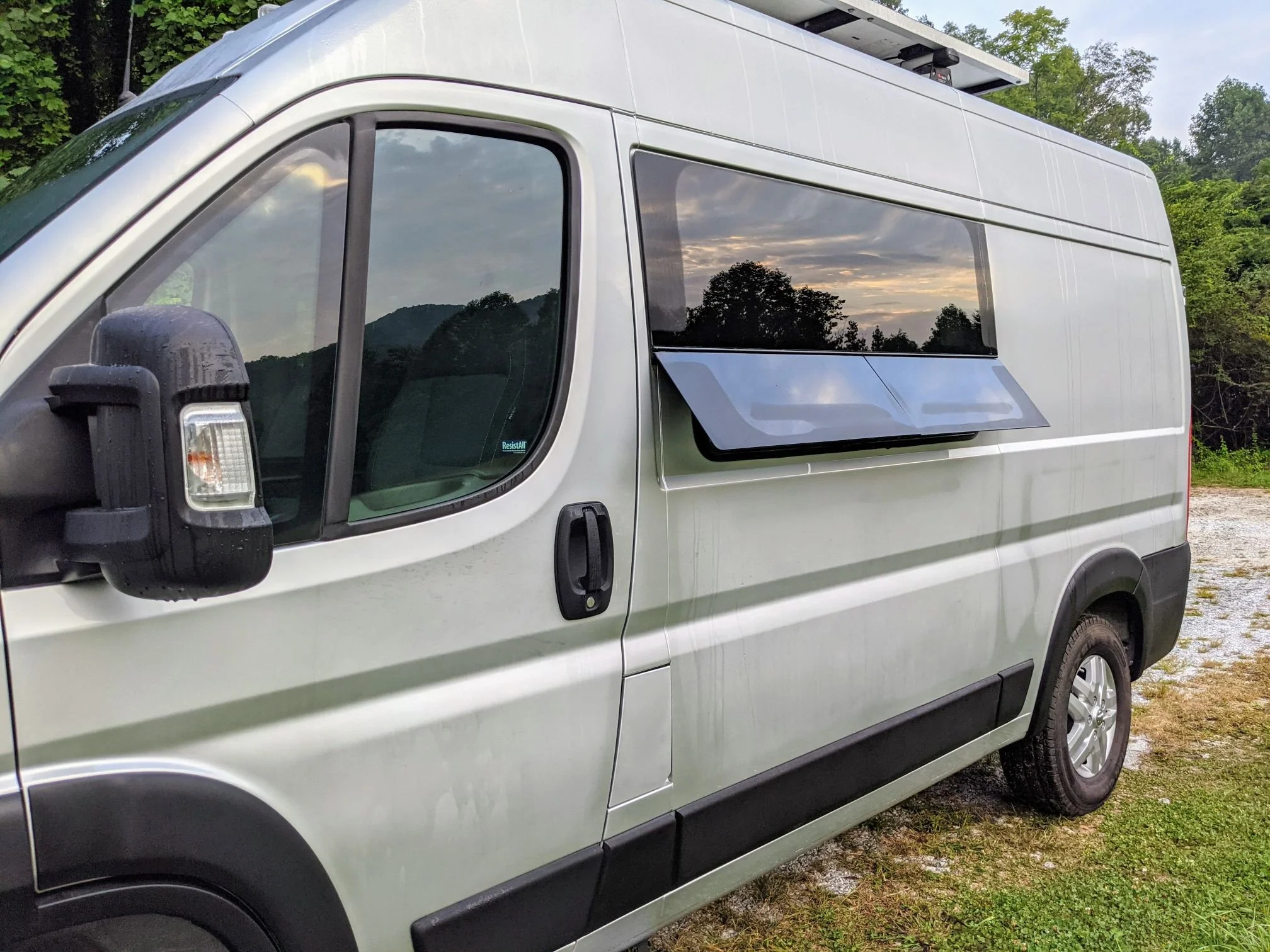

CR Laurence Louvre Side Windows on both Driver and Passenger sides.

Swivel seats for driver and passenger.

Window covers from Vanmadegear for driver side mid panel, passenger side slider door, and both rear windows.
